MULTICRACKER MC350

The food specialist

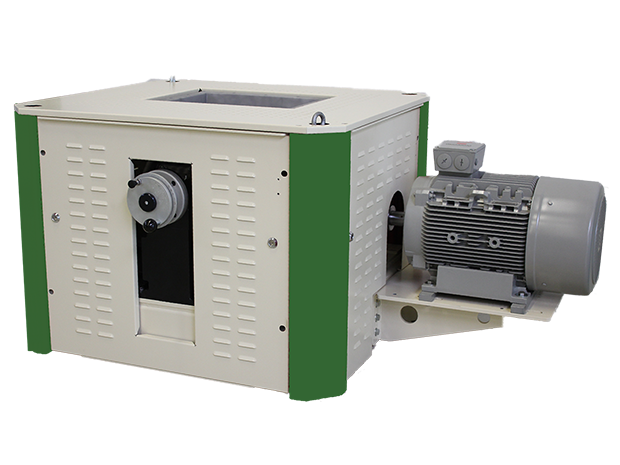

The MULTICRACKER® MC350 has a throughput capacity of up to 30 t/h and comes with a dust and water proof grinding unit. It is suitable and prepared for fully automated cleaning in the process (Cleaning In Place (CIP) and stainless steel options), making it the ideal crusher for many industrial applications demanding highest hygienic requirements, e.g. the food & beverage industry.

Technical specifications:

  • Throughput: Up to 30 metric tons per hour (depending on material and grinding gap)
  • Outer dimensions: 1700 x 1250 x 840 mm, 67 x 49 x 33 inches (L x W x H),
  • Weight: 1100 kg, 2.444 lb
  • Drive power: 1 x 22 kW (30 HP) or 1 x 30 kW (40 HP)
  • More details in the datasheet



Standard equipment

  • Crackerdisks resharpenable
  • Dust and water proof grinding unit in stainless steel
  • ATEX certified motor for zone 22

Available options

  • Motorized stepless adjustment of the grinding gap
  • Integriertes Reinigungssystem (CIP - Cleaning In Place)
  • Automatic bearing lubrication
  • Motor for ATEX zone 21, with NEMA certification and various protection classes (IP5x/IP6x)
  • Housing in stainless steel
