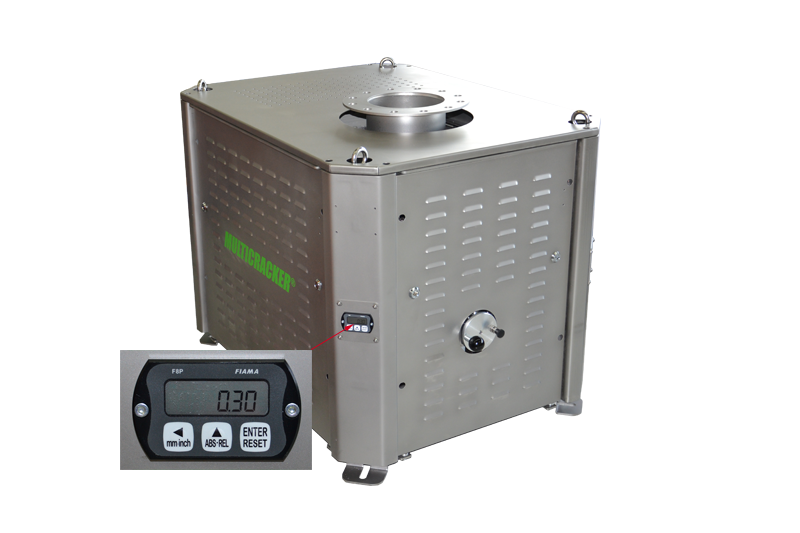

MULTICRACKER MC11

The ideal entry into modern grinding technology

The MULTICRACKER MC11 is the smallest model for the use in automated plants with continuous feed and discharge systems. It has a dust- and waterproof grinding unit. In combination with its compact dimensions and options for stainless steel and ATEX/NEMA motors, the MC11 is also ideal for the use in applications with high environmental requirements, such as suitable for the food industry. The full stainless steel version MC11 ES meets the highest hygienic requirements.

Technical specifications:

  • Throughput: Up to 8 metric tons per hour (depending on material and grinding gap)
  • Outer dimensions: 1090 x 810 x 827 mm / 43 x 32 x 33 inches (L x W x H),
  • Weight: 550 kg / 1.212 lb
  • Drive power: 2 x 5,5 kW / 2 x 7,48 hp
  • More details in the datasheet

Versions

Standard equipment:

  • Dust and water proof crackerunit
  • Inlet- and outlet chute DN200
  • Manual stepless adjustment of the grinding gap
  • Digital display of the grinding gap

Available options:

  • Motorized stepless adjustment of the grinding gap
  • ATEX/NEMA certified motors and various protection classes (IP5x/IP6x)
  • Product touching parts in stainless steel (except crackerdisks)
  • Intigrated CIP system (CIP - Cleaning In Place)

Standard equipment

  • Dust and water proof crackerunit
  • All product touching parts (except crackerdisks), machine frame and housing in stainless steel
  • Inlet- and outlet chute DN200
  • Manual stepless adjustment of the grinding gap
  • Digital display of the grinding gap

Available options:

  • Motorized stepless adjustment of the grinding gap
  • ATEX/NEMA certified motors and various protection classes (IP5x/IP6x)
  • Intigrated CIP system (CIP - Cleaning In Place)
