MULTICRACKER MC300
The universal machine for versatile applications
The MULTICRACKER® MC 300 is suitable for a wide range of applications with medium capacity demand e.g. in the animal feed industry or for basic applications in the food & beverage industry.
Technical specifications:
- Throughput: Up to 25 metric tons per hour (depending on material and grinding gap)
- Outer dimensions: 1638 x 1547 x 835 mm / 64,5 x 61 x 33 inches (L x W x H),
- Weight: 1300 kg / 2.889 lb
- Drive power: 2x 15 kW / 2x 20 HP (Horse Power)
- More details in the datasheet
Standard equipment:
- Crackerdisks resharpenable
- Crackerdisk profile of your choice (fine - medium coarse - coarse)
- Enclosed grinding unit
- Manual, stepless adjustment of the grinding gap
- Maschine certified for ATEX zone 22
- Drive motors certified for ATEX zone 22
Available options:
- Inlet/outlet chute sizes according to your specifications.
- Motors for ATEX zone 21, with NEMA certification and various protection classes (IP5x/IP6x)
- TWIN version for two-stage grinding
- Destoner (incl. permanet magnet and feed roll)

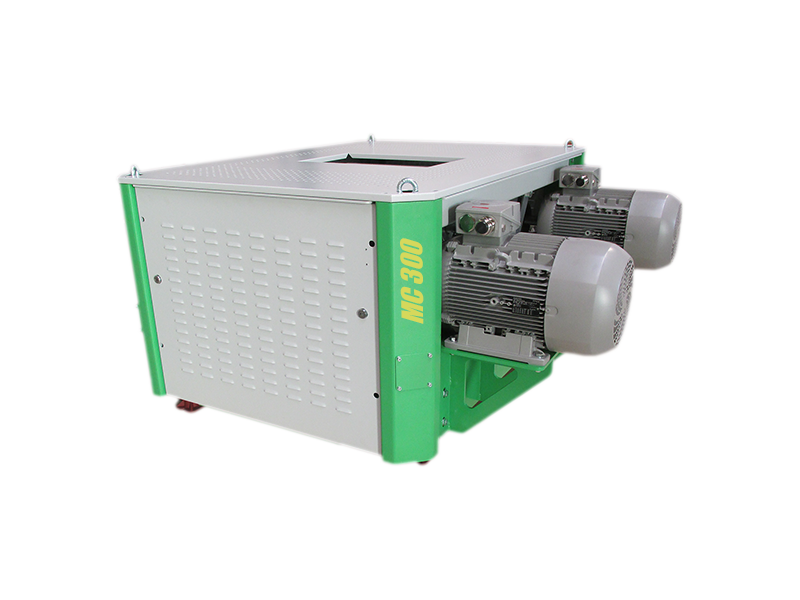

click to enlarge picture in a new window
